Panasonic KX-TDE600 Pure IP PBX communication systems
Panasonic KX-TDE600 Pure IP PBX communication systems,Panasonic KX-TDE-600 Pure IP-PBX System
- Expandable Single Line Up to 992*
- Expandable CO Line Up to 640*
- Expandable Hybrid Line up to 160*
- Expandable IP Proprietary Line up to 704*
- Total number of card slot-10
- Made in Vietnam
Product Description
Panasonic KX-TDE-600 Pure IP-PBX
Overview
The Panasonic KX-TDE Communications Platform is a robust, flexible communications system designed to offer incredible versatility for structuring your company’s communications network. Now you can build a cost-effective decentralized business tailored to meet today’s demanding business needs.
The KX-TDE is engineered with features that complement today’s decentralized, mobile business environment including Stay in touch with employees that are constantly on the move or away from their desks.
Networking capability using advanced IP technology, ISDN, or basic T1 services: Perfect for business with multiple locations.
The TDE allows you to add cards to accommodate additional extensions, COs or features, or you can activate the system’s built-in virtual IP ports by adding licenses.
The TDE’s modular design lets you expand quickly and seamlessly with the use of expansion shelves—up to a maximum of 640 CO lines and more than 1,000 extensions for even the largest, enterprise applications.
TDE systems can be networked together up to 16 sites to seamlessly link all your business communications.
Offering seamlessly connectivity of your business with the world is the Panasonic KX TDE600 PBX.
Helping you create multi-line networks for internal and external use, this EPABX system works on networks.
Designated communication channels are created by the PBX between employees in office and clients and field agents. With its features and functions it ensures you have complete support for your business communication.
Design and Construction
The amazingly designed Panasonic KX TDE600 PBX is a great fit for any space in your office area.
It features a modular chassis and interface. Available in black color, it appears to be very professional looking.
It has a memory storage capacity of 6 GB and features an Intel Core 2 Duo processor with a clock speed of 2.6GHz to deliver top performance. You can make great use of the functions such as Redial, Call Transfer, Do Not Disturb.
Functions
The Panasonic KX TDE600 PBX can be used for a variety of functions. It can be used for direct calling, call forwarding, call distributor and related functions. This PBX system will help ease the work of the receptionist or manager and helps create a convenient connectivity network amongst all the employees.
Features
Regardless of a power cut, Panasonic KX TDE600 PBX will continue to function without requiring a CPU. It has an effective backup system and can detect faults well in advance. Additionally, with Least Cost Routing, it also has noise cancellation, can be programmed to ring simultaneously on a cell phone number the desk phone and comes with durable, scratch and splash proof handsets!
Safety Features
Standard EPABX security of call encryption, monitoring and selective control power on call records, system updates and numbers that can be called remain. Supporting companies with geographically diverse offices, this system ensures communication on your own safe and secure network.
Panasonic KX-TDE600 Specifics
- Max CO Lines: 640
- Max Analog CO’s: 640
- Max VoIP (H.323) trunks: 32
- Max VoIP (SIP) trunks: 64
- Max Total Extensions: 992 (1152 with DXDP)*
*Even when Digital XDP is used, each shelf supports a maximum of 256 KX-DT300/KX-T7600 series - Max Analog Proprietary Extensions: 320
- Max Single Line Telephones: 960
- Max Digital Proprietary extensions: 640 (DT300, T7600 series)
- Max IP Proprietary Phone extensions: 704
- Max SIP extensions: 128
- Multi-Cell Wireless Compatible: Yes
- Maximum Cell Stations (Antennas): 128
- Maximum Portable Handsets: 512
- Direct Station Select (DSS) Consoles: 64
- Dimensions (H x W x D): 16.3″ x 16.9″ x 10.6″ (per shelf)
- Weight: under 35 lbs (per shelf)
We are the leading supplier of KX-TDE600 Pure IP Telecommunication System in Nairobi Kenya.
Presentation on theme: “KX-TDE600 Pure IP Telecommunication System”— Presentation transcript:
1 KX-TDE600 Pure IP Telecommunication System
The Intelligent Solution Terry Hughes General Manager Product Marketing
2 Agenda Introduction KX-TDE600 The Intelligent Solution System Overview
KX-TDE – Scalable Business Telephony Solutions TDE600 – Modular and Scalable Product Proposition Key Business Applications System Capacity & Overview System Telephones Business Applications & Solutions
3 KX-TDE600 – The Intelligent Solution
Panasonic KX-TDE600 Pure IP PBX is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks.
Empowered with the latest SIP technology and packed with extensive productivity applications, the KX-TDE600 IP-PBX: Ideal for Medium-Large Business Solutions Supports a range of analogue.
digital and cost-effective IP telephony devices Support integrated SIP Network Connectivity Support SIP extensions without any additional servers Provide desktop mobility and mobile phone integration Connectivity with application to increase user and business productivity Provides a solution easy to installation & maintenance
4 KX-TDE600 New IP PBX Product
All-in-One Converged IP Platform New IP Platform, Traditional Telecom and IP Interfaces, a true converged system for today and the future.
Smooth Migration Path for TDE user Easy/Smooth Migration is the key for converged systems today. Existing KX-TDA600 systems can easily upgrade for the new features simply replacing a single system card (MPR Card).
Easy Installation and Management Easy to install users, feature and system cards Unified programming tool allows for remote access for programming. TDE600 – Key New Features: Support up to 1100 telephony users Up to 64 IP-PT’s, and 32 IP-Trunks –hardware built in Digital IP Networking Up to 128 Standard SIP Phones Supported (no need for server) Full PBX Functions and Solutions Allows users to work remotely within a small or home office KX-TDE600
5 KX-TDE – Scalable Business Telephony Solutions
TDE100, 200, 600 – System Scale Scalable range of Analogue & Digital Ports Common on all three TDE models: 64 IP-PT’s 32 IP-Trunks 128 Standard SIP Phones KX-TDE100 KX-TDE200 KX-TDE600 24 ~ 160 users 64 ~ 256 users 128 ~ 1100 users Scalable Business Telephony Solution from Small to Enterprise Size
6 TDE600 Deployment TDE600 is ideal for: Large Single Sites
Manufacturing Hotel Hospital Offices Multiple Site Networks Medium Size Enterprise Solutions with wide choice Digital Handsets IP Handsets Wireless Handsets Application Integration
7 Connect Multiple Offices
TDE600 Solutions Provide Head Office Solution Network to other offices Connect to Small/Home Office over VPN/Broadband Connection Head Office Sales Office Home Office Regional Office
8 Office Network Solution Example
Corporate Office TDE600 PSTN World Wide Web Managed IP VPN Home/Remote Office Branch Office NCP500 = VPN Routers
9 KX-TDE600 – Modular and Scalable
Basic Shelf KX-TDE600 2-Shelf System KX-TDE600 + TDE620 3-Shelf System KX-TDE600 + 2 x TDE620 Max. System KX-TDE600 + 3 x TDE620 368 Ports without DXDP 432 Ports with DXDP 608 Ports without DXDP 736 Ports with DXDP 848 Ports without DXDP 1008 Ports with DXDP 992 Ports without DXDP 1152 Ports with DXDP 360 users Single Cabinet 600 users Dual Cabinet 900 users Triple Cabinet 1100 users 4 Cabinets
10 System Overview & Capacity
KX-TDE600 System Overview & Capacity
11 KX-TDE600 IP PT Capacity KX-TDE600 Maximum IP PT Capacity: 640
IPCMPR supports 64 IP Extensions Increase IP capacity with TDA0470 Terminal Type Basic Shelf System 2 Shelves 3 Shelves 4 Shelves System (Max) PT 256 512 640 IPPT (to TDA0470) 160 320 480 Virtual Extension Cards 128 SIP Built-in IPPT 64
12 KX-TDE600 System Trunk Capacity
Type Basic Shelf System 2 Shelves 3 Shelves 4 Shelves System (Max) Max. Trunk 192 352 512 640 Physical Cards 160 320 480 Analogue BRI PRI30 / E1 150 300 450 600 PRI23 115 230 345 460 T1 120 240 360 IP-GW (H.323) Virtual Trunk Cards 32 SIP
13 KX-TDE600 Extension Capacity
Terminal Type Basic Shelf System 2 Shelves 3 Shelves 4 Shelves System (Max) Max. Extension w/o DXDP 368 608 848 992 w/ DXDP 432 736 1008 1152 Physical Cards w/o DXDP 240 480 720 960 304 880 1120 SLT PT 256 512 640 DPT w/o DXDP 160 320 IPPT (to TDA0470) Virtual Extension Cards 128 SIP IPPT (to IPCMPR) 64
14 Expansion Shelves – KX-TDE620

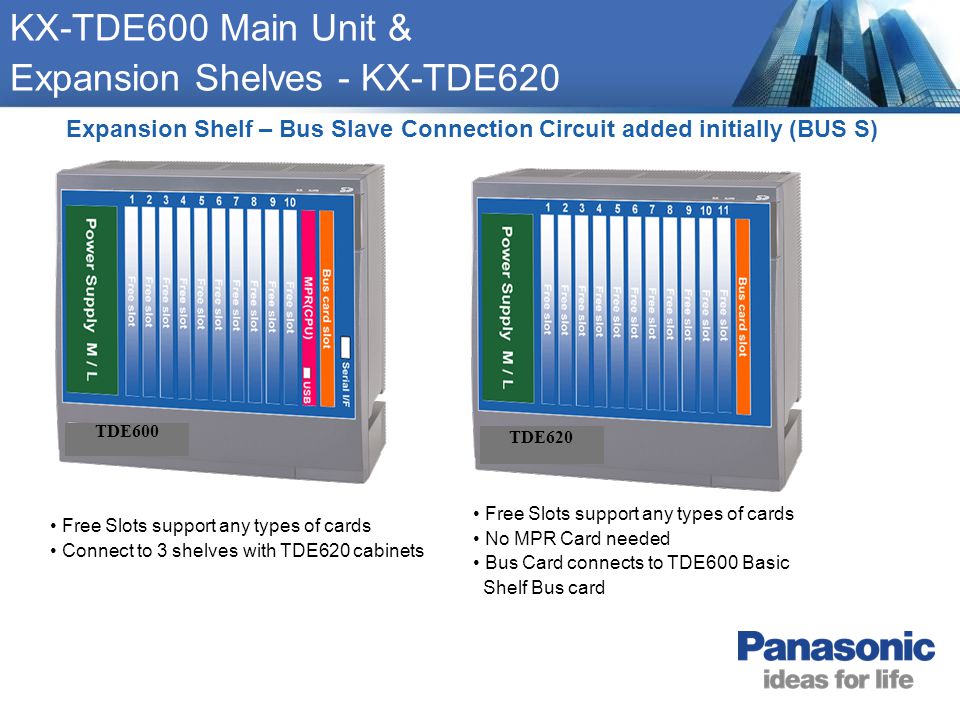

KX-TDE600 Main Unit & Expansion Shelves – KX-TDE620 Expansion Shelf – Bus Slave Connection Circuit added initially (BUS S) TDE600 TDE620 • Free Slots support any types of cards • No MPR Card needed • Bus Card connects to TDE600 Basic Shelf Bus card • Free Slots support any types of cards • Connect to 3 shelves with TDE620 cabinets
15 Enhanced Simple VoiceMail – Option Cards
ESVM2 (Option: KX-TDE0192) or ESVM4 (Option: KX-TDE0194) Enhanced SVM cards provide added message recording and outgoing message handling capabilities 3 modes for complete flexibility: SVM Mode: For Simple Voice Mail only features MSG Mode: For DISA functionality leveraging Outgoing Message recordings. The MSG mode can also support mobile telephone extension integration SVM + MSG: Allowing customers to have both a simple voice mail as well as DISA functionality. Upload from PC high-quality sound files (8kHz, 16 bit .wav file) that can be played as OGM recordings – for various outgoing message applications ESVM Option (s) DISA Channels SVM Channels Modes Recordings Messages OGM KX-TDE0192 2 SVM* 250 – MSG 64 SVM + MSG 186 KX-TDE0194 4 2 x 2 2 x 250 2 x 186 Note: Out of the installed ESVM cards only 2 cards can be set to be in SVM mode
16 Enhanced Simple VoiceMail – Option Cards
Voice Message solution capacities Voice Messaging Type Connection Channels Capacity ESVM-2 (KX-TDE0192) Optional OPB3 2 Ch SVM, 2 Ch DISA 250 messages, 120 mins. ESVM-4 (KX-TDE0194) 2 x 2 Ch SVM, 4 Ch DISA 2 x 250 messages, 120 mins. KX-TVM50 External DPT, or LAN 2 – 6 4 – 8 hours KX-TVM200 0 – 24 1000 hours SVM Recording capacity Quality No. of Messages Duration (minutes) High 250 20 Medium 60 Low 120 Note: Duration of Messages depends on the Quality setting
17 Digital Signal Processor
Why do you need one? When you need to maximise bandwidth Remote worker on VPN Home worker on ADSL (2MB down/256K uplink) G K for voice G K for voice When to choose DSP64 If you have more than 16 x G.729 compressed VoIP extension calls. If you have more than 12 x G.729 compressed VoIP trunk calls. If you have more than 7 x G.729 compressed trunk calls connected to 7 x G.729 compressed extensions.
18 KX-TDE600 Activation Keys – Built-in
1. Built-In Activation Key DSP64 DSP16 4 IP Trunk 8 IP-PT activation key 16 IP Trunk 32 IP-PT activation key DSP Built-in Activation Keys Key Type Quantity KX-NCS4104 4 IP Trunk (SIP or H.323) 1 KX-NCS4508 8 IP PT 4 DSP16 DSP64 Note: DSP 4 not available
19 KX-TDE600 Activation Keys
Additional Activation Key IP trunk, IP-PT and SIP-extension activation keys are available for installation along with software upgrade keys. You can get all additional activation keys from the web based key management system
20 KX-TDE600 Temporary Activation Keys
3. Temporary Maintenance Activation Key If there is an IPCMPR failure and the board is swapped for repair, you can obtain temporary activation keys from the online PCC key management system.
These keys are valid for 10 days, while the IPCMPR is repaired. If temporary keys are required for a longer period, longer than 10 days, then they must be re-issued every 10 days (You must have an MPR ID to request temporary keys). There is no charge for the use of temporary keys. Previously downloaded license files can be re-used on the same MPR card (In the event of a system rebuild/restore).
21 KX-TDE600 System-Telephones
22 System Telephones New IP Proprietary Telephones – KX-NT300 Series
KX-NT300 Series – Line Up KX-NT300 Series – Specifications KX-NT300 Series – Compatibility KX-NT300 Series – Features KX-NT300 Series – Accessories Digital Proprietary Telephones – KX-DT300 Series KX-DT300 Series – Line Up KX-DT300 Series – Specifications KX-DT300 Series – Compatibility KX-DT300 Series – Features KX-DT300 Series – Accessories
23 KX-NT300 IP Telephone Family
IP Proprietary Telephones (IP-PT) KX-NT343 KX-NT346 KX-NT366 KX-NT321 * All models are available in both Black and White
24 KX-DT300 Digital Telephone Family
Digital Proprietary Telephones (DPT) KX-DT333 KX-DT343 KX-NT346 * All models are available in both Black and White
25 KX-DT300 Series – Accessories
To PBX USB Interface (KX-DT301) – For 1st Party CTI connection Available for DT343/346 Add-on Digital DSS key Module (KX-DT390) – 60 Direct Station Selection (DSS)/Busy Lamp Field (BLF) – Physically attached to Digital System Telephone by a screw – No restrictions for programmable Flex Keys Add-on 12 CO Key Module (KX-NT303) – Additional 12-Flexible CO Key/Busy Lamp Field (BLF) – An add-on 12 CO Key Module is available for DT343/346 USB LAN PC running CTI application software
26 DECT Wireless Handsets – KX-TCA series
KX-TCA155 – Standard Type • Headset Support • Large Back-lit Blue LCD • 3 Programmable Menu Keys KX-TCA256 – Compact • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys KX-TCA355 – Tough-type • IP54 compliant • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys
27 DECT Cell Stations KX-TDE0141 KX-TDE0142 KX-TDE0158
• 2-ch Cell Station (CS) • Connects to Digital Extension Port KX-TDE0142 • 4-ch Cell Station (CS) • Connects to: KX-TDE0143 / KX-TDE0144 KX-TDE0158 • 8-ch Cell Station (CS) • Connects to Digital Extension Port
Call us today and buy the Panasonic KX-TDE600 Pure IP PBX communication systems at the most affordable price.
- VOIP compatible, enabling you to make maximum use of the existing network links between offices and Cutting call costs
- Computer Telephony Integration (CTI) enables telephone system and PC to act as one coordinated business tool.
- Flexible call ringing groups available
- Integrating DECT cordless telephones, deal with urgent calls as and when they are received – and save money by not having to return missed calls
Panasonic KX-TDE600 Pure IP PBX communication systems
The Panasonic KX-TDE600 Pure IP PBX communication systems is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks.
- The KX-TDE600 OneNet Pure IP PBX is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks
- Empowered with the latest SIP technology and packed with extensive productivity applications, the KX-TDE600 OneNet IP-PBX
- Is designed for a medium to large business up to 1100 users
The Panasonic KX-TDE600 OneNet builds on the “Pure IP PBX” converged model as in KX-TDE100 / 200 OneNet.
As an advanced communication platform for IP networking Environments, supporting network as well as desktop SIP connectivity, the convergence ready KX-TDE OneNet products support a range of advanced IP telephones as well as digital extensions and ISDN trunks.
Built as a business application environment and bundled with important business telephony applications – the KX-TDE OneNet systems can easily address your business communication needs well into the 21st Century. Targeting Medium to Large businesses, single site or multiple offices, the TDE600 One Net is a welcome member to the family to support customer needs.
Features
|
Specifications
- Max CO Lines: 640
- Max Analog CO’s: 640
- Max VoIP (H.323) trunks: 32
- Max VoIP (SIP) trunks: 64
- Max Total Extensions: 992 (1152 with DXDP)*
*Even when Digital XDP is used, each shelf supports a maximum of 256 KX-DT300/KX-T7600 series - Max Analog Proprietary Extensions: 320
- Max Single Line Telephones : 960
- Max Digital Proprietary extensions: 640 (DT300, T7600 series)
- Max IP Proprietary Phone extensions: 704
- Max SIP extensions: 128
- Multi-Cell Wireless Compatible: Yes
- Maximum Cell Stations (Antennas): 128
- Maximum Portable Handsets: 512
- Direct Station Select (DSS) Consoles: 64
- Dimensions (H x W x D): 16.3″ x 16.9″ x 10.6″ (per shelf)
- Weight: under 35 lbs (per shelf)
Reviews
There are no reviews yet.
